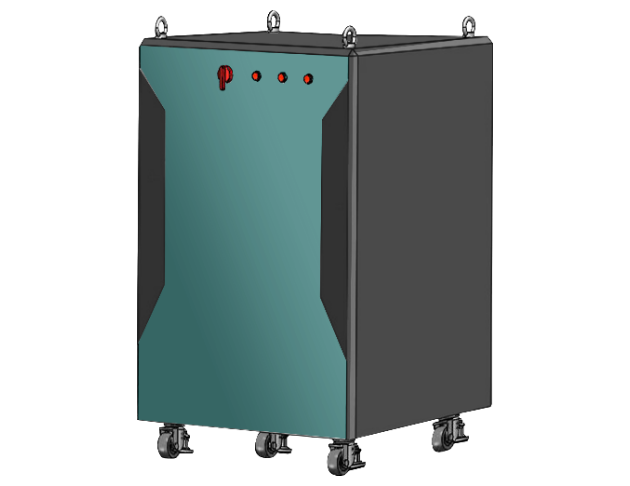

PLANAR LASER 20kW
PLANAR LASER 20kW
Description：
￭ Output power 20kW
￭ Beam 400X100 mm with 90% uniformity
Typical Application :
￭ Surface Treatment
￭ Lithium battery slurry drying
￭ Powder coating drying
￭ Industrial coating curing
￭ Semiconductor wafer heating
￭ Incineration of medical waste
| Storage & Operation requirements | ||
| Working Environment Temperature | 10~40℃ | |
| Working Environment Humidity | <70% | |
| Storage Temperature | -10~60℃ | |
| Required Minimum Cooling Capacity | >60kW | |
| Cooling Water Temperature | 25±1℃ for Laser, 30℃ for output | |
| Required Cooling Water Flow | >200 L/min for Laser, 3~5 L/min for output | |
| Water Pipe Size | for Laser | φ38mm Explosion proof tube φ6mm PU tube |
| for output | ||
| Water Pressure Range | 5~8bar | |
| OPTICAL CHARACTER | |
| Power | 20 kW |
| Wavelength | 976 nm ± 10nm |
| Output Cable Length | 10 m (Typical) |
| Beam Area @ 1.5M distance | 400X100 mm |
| Beam Uniformity | 90% |
| Aiming Beam | Red |
| Operation Mode | CW / Pulse |
| Polarization | Random |
| Power Stability (25℃) | >97% (2h) |
| Power Adjustment Scope | 10% - 100% |
| Max Modulation Frequency | 5 kHz |
| MECHANICAL CHARACTER | |
| Physical Size (H X W x D) | 750 mm x 850 mm x 1200 mm |
| Weight | <400 Kg |
| Cooling Method | Water cooling |
| ELECTRONIC CHARACTER | |
| Power Supply | AC 380V ± 10%, 50/60 Hz |
| Power Consumption | 65 kW |
| Control Interface | RS232 / DB25 |
