PLANAR LASER 100W
PLANAR LASER 100W
Description：
￭ Output power 100W

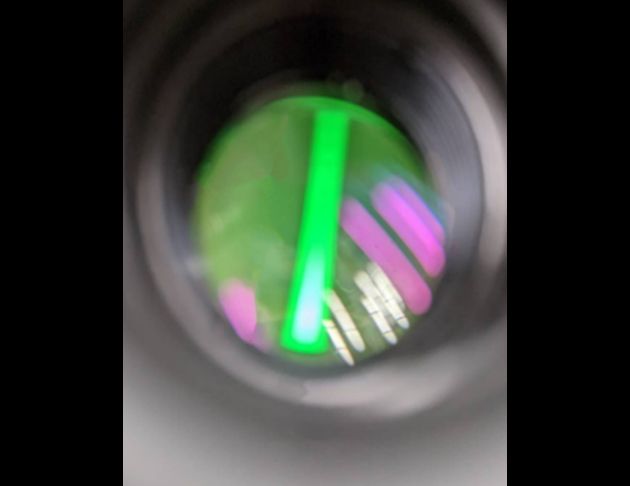

￭ Beam area 200X20 mm with 90% uniformity
Typical Application :
￭ Surface Treatment
￭ Lithium battery slurry drying
￭ Powder coating drying
￭ Industrial coating curing
￭ Semiconductor wafer heating
￭ Electronics components laser welding
| Storage & Operation requirements | |
| Working Environment Temperature | 0~30℃ |
| Working Environment Humidity | <70% |
| Storage Temperature | -10~70℃ |
| OPTICAL CHARACTER | |
| Power | 100 W |
| Wavelength | 976 nm ± 10nm |
| Output Cable Length | 5 m (Typical) |
| Beam Area @ 300mm distance | 200X20 mm |
| Beam Uniformity | 90% |
| Aiming Beam | Red |
| Operation Mode | CW / Pulse |
| Polarization | Random |
| Power Stability (25℃) | >97% (2h) |
| Power Adjustment Scope | 10% - 100% |
| Max Modulation Frequency | 5 kHz |
| MECHANICAL CHARACTER | |
| Physical Size (H X W x D) | 490 mm x 482.6 mm x 88.9 mm |
| Weight | <9 Kg |
| Cooling Method | Air cooling |
| ELECTRONIC CHARACTER | |
| Power Supply | AC 220V ± 10%, 50/60 Hz |
| Power Consumption | 300 W |
| Control Interface | RS232 / DB25 |
