CTK-SU0005-A

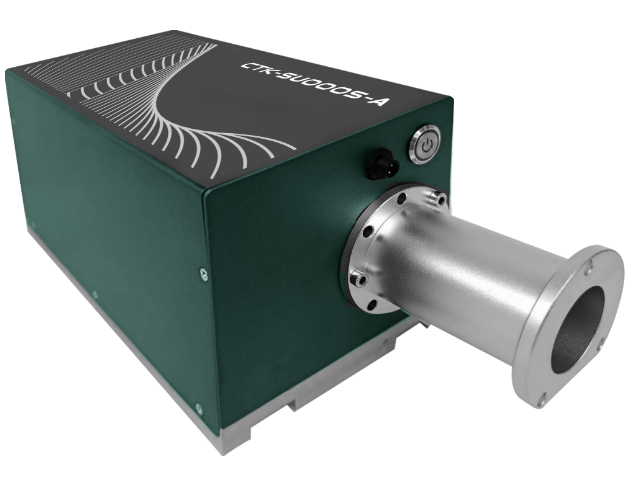

CTK-SU0005-A UV 355nm SSL Laser - 5W
Description：
￭ Average power 5W
￭ High power stability RMS<3%
￭ Beam quality M2<1.2
￭ Integrated structural design, easy to install
Typical Application :
￭ PCB/FPC Cutting/Drilling
￭ Glass Marking/Frosting
￭ Flexible Materials Cutting
￭ Hard Materials Cutting
| Storage & Operation requirements | |
| Working Environment Temperature | 15~35℃ |
| Working Environment Humidity | <70% |
| Storage Temperature | 0~50℃ |
| Required Minimum Cooling Capacity | <810W |
| Cooling Water Temperature | 25±0.1℃ |
| Required Cooling Water Flow | <16 L/min |
| Water Pipe Size | φ8mm*5mm Explosion proof tube |
| Water Pressure Range | 3~5bar |
| OPTICAL CHARACTER | |
| Average Power | >5 W@40kHz |
| Wavelength | 355 nm |
| Beam Quality M² | <1.2 |
| Max. Pulse Energy | >167 μJ@30kHz |
| Modulation Frequency | 30-150 kHz |
| Pulse Width (FWHM) | <15 ns@40kHz |
| Beam Diameter | 3 mm (6X) |
| Spot Ellipticity | >90 % |
| Power Instability (RMS) | <3 % |
| MECHANICAL CHARACTER | |
| Laser Dimension (H X W x D) | 121 mm x 115 mm x 285 mm |
| Weight | 4.6 Kg |
| Cooling Method | Water cooling |
| ELECTRONIC CHARACTER | |
| Power Supply | 12 VDC |
| Power Consumption | <350 W |
| Recommended Power Supply | 350 W |
| Control Interface | RS232 / DB15 |
