CTK-SG0060-A

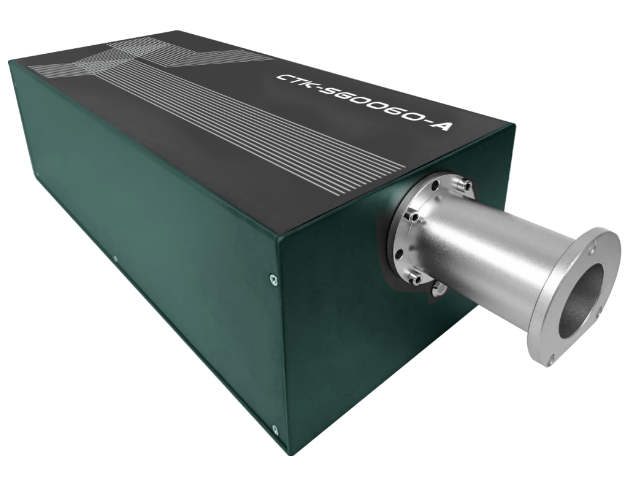

CTK-SG0060-A Green 532nm SSL Laser - 60W
Description：
￭ Average power 60W
￭ High single pulse energy 1200uJ
￭ Beam quality M2<1.3
￭ Integrated structural design, easy to install
Typical Application :
￭ PCB Cutting
￭ Silicon Cutting
￭ Glass Drilling
￭ Precision Marking
￭ Micro-engraving
| Storage & Operation requirements | |
| Working Environment Temperature | 15~35℃ |
| Working Environment Humidity | <70% |
| Storage Temperature | -10~50℃ |
| Required Minimum Cooling Capacity | >1000W |
| Cooling Water Temperature | 25±0.1℃ |
| Required Cooling Water Flow | >8 L/min |
| Water Pipe Size | φ10mm*6mm Explosion proof tube |
| Water Pressure Range | 3~5bar |
| OPTICAL CHARACTER | |
| Average Power | >60 W@50kHz |
| Wavelength | 532 nm |
| Beam Quality M² | <1.3 |
| Max. Pulse Energy | >1.2 mJ@50kHz |
| Modulation Frequency | 50-200 kHz |
| Pulse Width | <20 ns@50kHz |
| Beam Diameter | ~11 mm (8X) |
| Spot Ellipticity | >90 % |
| Power Instability (RMS) | <3 % |
| MECHANICAL CHARACTER | |
| Laser Dimension (H X W x D) | 138 mm x 210 mm x 480 mm |
| Weight | <19 Kg |
| Cooling Method | Water cooling |
| ELECTRONIC CHARACTER | |
| Power Supply | 48 VDC |
| Power Consumption | <576 W |
| Recommended Power Supply | ≧800 W |
| Control Interface | RS232 / DB25 |
