CTK-SG0020-A

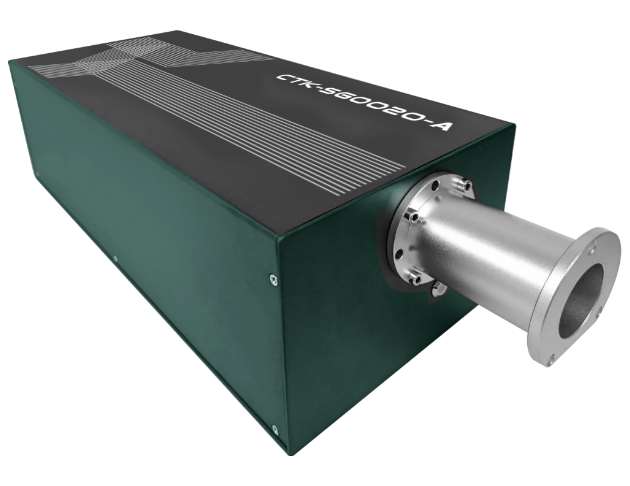

CTK-SG0020-A Green 532nm SSL Laser - 20W
Description：
￭ Average power 20W
￭ High single pulse energy 0.4mJ
￭ Beam quality M2<1.2
￭ Integrated structural design, easy to install
Typical Application :
￭ Diamond Cutting
￭ Glass Drilling
￭ Precision Marking
￭ Micro-engraving
| Storage & Operation requirements | |
| Working Environment Temperature | 15~35℃ |
| Working Environment Humidity | <70% |
| Storage Temperature | 0~50℃ |
| Required Minimum Cooling Capacity | <810W |
| Cooling Water Temperature | 25±0.1℃ |
| Required Cooling Water Flow | <16 L/min |
| Water Pipe Size | φ10mm*8mm Explosion proof tube |
| Water Pressure Range | 3~5bar |
| OPTICAL CHARACTER | |
| Average Power | >20 W@50kHz |
| Wavelength | 532 nm |
| Beam Quality M² | <1.2 |
| Max. Pulse Energy | >0.4 mJ@50kHz |
| Modulation Frequency | 20 - 150 kHz |
| Pulse Width | <25 ns@50kHz |
| Beam Diameter | 5 mm (8X) |
| Spot Ellipticity | >90 % |
| Power Instability (RMS) | <3 % |
| MECHANICAL CHARACTER | |
| Laser Dimension (H X W x D) | 126 mm x 171 mm x 398 mm |
| Weight | 8.4 Kg |
| Cooling Method | Water cooling |
| ELECTRONIC CHARACTER | |
| Power Supply | 24 VDC |
| Power Consumption | <350 W |
| Recommended Power Supply | 350 W |
| Control Interface | RS232 / DB15 |
