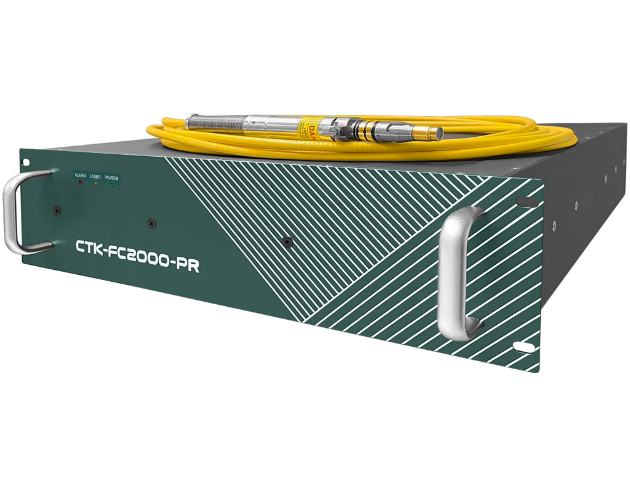

CTK-FC2000-PR
CTK-FC2000-PR Single Mode CW Laser 2000W
Description：
￭ High beam quality(M2<1.2)
￭ Max modulation frequency 5kHz
￭ Single mode fiber core diameter (20/400um)
￭ Water-cooling
Typical Application :
￭ Precision Cutting
￭ Precision Welding
￭ 3D Printing
￭ Silicon Lossless Scribing
| Storage & Operation requirements | ||
| Working Environment Temperature | 10~40℃ | |
| Working Environment Humidity | <70% | |
| Storage Temperature | -10~60℃ | |
| Required Minimum Cooling Capacity | 4.5 kW | |
| Cooling Water Temperature | 25±1℃ for Laser, 30℃ for QBH | |
| Required Cooling Water Flow | >18 L/min for Laser, 1.5~2 L/min for QBH | |
| Water Pipe Size | for Laser | φ16mm*12mm explosion-proof tube φ6mm*4mm PU tube |
| for QBH | ||
| Water Pressure Range | 3~5bar | |
| OPTICAL CHARACTER | |
| Power | 2000 W |
| Wavelength | 1080 nm ± 10nm |
| Output Cable Length | 6 m (Typical) |
| Output Cable Connector (Core Diameter) | QBH (20/400um) |
| Beam Quality M² | <1.2 |
| Aiming Beam | Red |
| Operation Mode | CW / Pulse |
| Polarization | Random |
| Power Stability (25℃) | >97% (2h) |
| Power Adjustment Scope | 10% - 100% |
| Max Modulation Frequency | 5 kHz |
| MECHANICAL CHARACTER | |
| Physical Size (H X W x D) | 125 mm x 482.6 mm x 660 mm |
| Weight | <38 Kg |
| Cooling Method | Water cooling |
| ELECTRONIC CHARACTER | |
| Electrical Details | AC 220V 50-60Hz 1Ph |
| Power Consumption | 6 kW |
| Control Interface | RS232 / DB25 |
